See the 4-Leg Spider Dolly Demo Video Click here for assembly instruction videos. If you are comparing dolly systems and are unclear about the advantages of a tripod dolly versus a rideable dolly, please click here to visit our Learning Center and read "Pivoting Seat vs. Stationary Seat vs. No Seat." Losmandy® 4-Leg Spider Dolly shown with DV Adjustable Column, Push Bar, Swivel Seat, 100mm DV top, Platforms,Track Wheels and FlexTrak. |

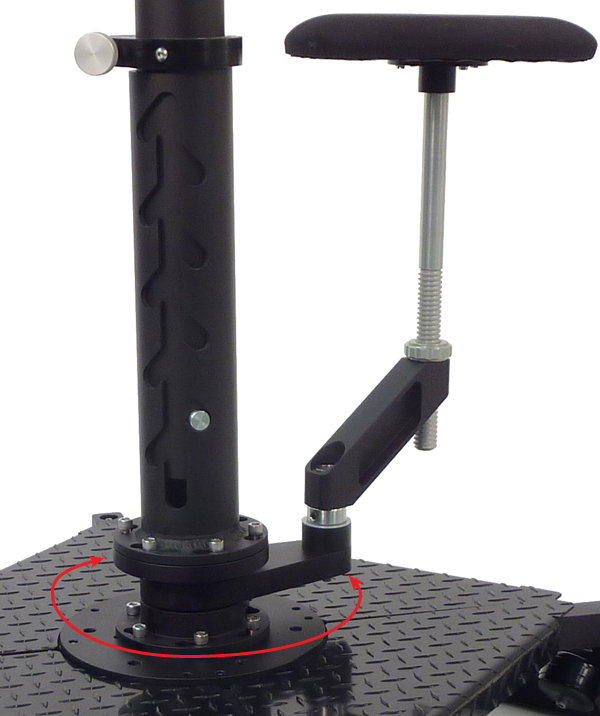

One of the best features of our 4-Leg Spider is the combination of our Pivoting Seat mounted on the Swivel Seat Mechanism. The Swivel Seat Mechanism pivots 360 degrees around the column, while the Pivoting Seat allows the camera operator to move in and out relative to the column. Putting these two motions together lets the camera operator keep his eye tucked into the camera’s eyepiece and rotate his body around the column in sync with the panning motion of the fluid head. The camera operator can concentrate on his framing and incorporate a zoom or focus pull with his left hand as his right hand controls the pan and tilt. The seat assembly adjusts its height by moving the threaded nut on the shaft. Also, the upper non-threaded section of the seat shaft can be removed from the bottom threaded section to drop the padded seat down lower for low-shot work. |
|
 Low Shot Kit $929 Click here for pop-up animation featuring details including height variations for DV Column and Low Shot Kit. Note: Use the Pause button to study individual pages of this animation. |
 Low Shot Kit in Custom Case |
| 4-LEG SPIDER DOLLY SYSTEMS AND CASES | |||
| SP4TS | 4-Leg Spider with Track Wheels, DV Column, 100mm Top, Single Pivot Seat, Swivel Seat Mechanism, Pushbar & set of 4 Platforms (as pictured above) |
$5760 | |
| SP4T/C1 | Custom Case 1 for 4-Leg Spider Dolly System | $895 | |
| SP4T/C2 | Custom Case 2 for 4-Leg Spider Dolly System | $895 | |
| SP4TSC | Set of 2 Cases for 4-Leg Spider Dolly System | $1790 | |
| LSK | Low Shot Kit | $929 | |
| LSKC | Case for Low Shot Kit | $470 |
 |
 |
 |
| Set of two cases for the 4-Leg Spider System -- $1780 | ||
| 4-LEG SPIDER DOLLY ACCESSORIES | |||
| DVAC | DV Adjustable Column | $1295 | |
| Adjustments are in 1.5" (3.8cm) increments. Holds up to 200 lbs. (91kg) and adjusts from 21" (53cm) to 34" (86.36cm), mounts to either 3-Leg or 4-Leg Spider Dolly and accepts 100mm, 150mm and Mitchell Tops. Wt. 9 lbs. (4.1kg) (Tops are Extra) The height range of the DV Adjustable Column is based on using the lowest position for putting the camera at an appropriate height for shooting someone in a seated position, and the high position for shooting someone standing. |
 Click for larger image |
||
| DV100T | 100mm DV Top | $550 | |
| DV150 | 150mm DV Top | $545 | |
| DVM | Mitchell DV Top | $450 | |
| SSM | 360° Swivel Seat Mechanism | $615 | |
| SPS | Single Pivot Seat | $450 | |
| SPPB | Push Bar Assembly | $510 | |
| SPP | Set of 4 Platforms (only for 4 leg configuration) | $400 | |
| LSK | Low Shot Kit | $940 | |
| LSKC | Case for Low Shot Kit | $475 |
| BONUS FEATURES LOSMANDY MINI TROLLEY For table top work where a track separation of 9-10 inches is preferable to the normal 24" separation required by the Spider Dolly, you can re-configure your 4-Leg Spider Dolly to become a 4-Wheel Mini Trolley. Click here for details.  |
 Owners of the 4-Leg Spider Dolly System can reconfigure the dolly to the 3-Leg Spider Dolly to use with a tripod. |
||
| 4-Leg Mini Trolley with 150mm cup |
